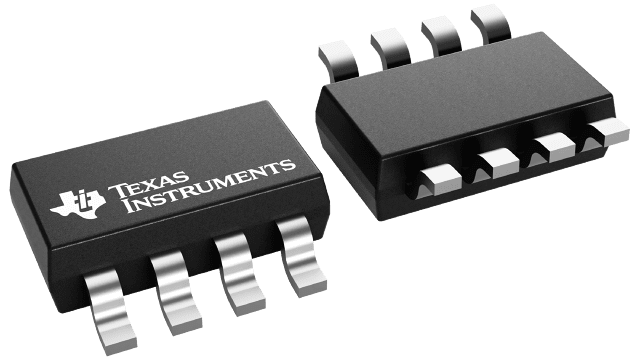

INA241A-Q1
供应商:
描述: 具有增强型 PWM 抑制功能、符合 AEC-Q100 标准的 -4V 至 110V、双向、超精密电流检测放大器
物料参数
| Product type: | Analog output |
| Common-mode voltage (max) (V): | 110 |
| Common-mode voltage (min) (V): | -5 |
| Input offset (±) (max) (µV): | 8, 10, 15, 20 |
| Input offset drift (±) (typ) (µV/°C): | 0.05, 0.1 |
| Voltage gain (V/V): | 10, 20, 50, 100, 200 |
| CMRR (min) (dB): | 150 |
| Bandwidth (kHz): | 1100 |
| Supply voltage (max) (V): | 20 |
| Supply voltage (min) (V): | 2.7 |
| Iq (max) (mA): | 3.2 |
| Number of channels: | 1 |
| Comparators (#): | 0 |
| Gain error (%): | 0.01, 0.015 |
| Gain error drift (±) (max) (ppm/°C): | 1 |
| Slew rate (V/µs): | 5 |
| Rating: | Automotive |
| TI functional safety category: | Functional Safety-Capable |
| Operating temperature range (°C): | -40 to 125 |
| Product type: | Analog output |
| Common-mode voltage (max) (V): | 110 |
| Common-mode voltage (min) (V): | -5 |
| Input offset (±) (max) (µV): | 8, 10, 15, 20 |
| Input offset drift (±) (typ) (µV/°C): | 0.05, 0.1 |
| Voltage gain (V/V): | 10, 20, 50, 100, 200 |
| CMRR (min) (dB): | 150 |
| Bandwidth (kHz): | 1100 |
| Supply voltage (max) (V): | 20 |
| Supply voltage (min) (V): | 2.7 |
| Iq (max) (mA): | 3.2 |
| Number of channels: | 1 |
| Comparators (#): | 0 |
| Gain error (%): | 0.01, 0.015 |
| Gain error drift (±) (max) (ppm/°C): | 1 |
| Slew rate (V/µs): | 5 |
| Rating: | Automotive |
| TI functional safety category: | Functional Safety-Capable |
| Operating temperature range (°C): | -40 to 125 |
无库存
